Hayman Reese Gooseneck Kit (Tub)

$2,350

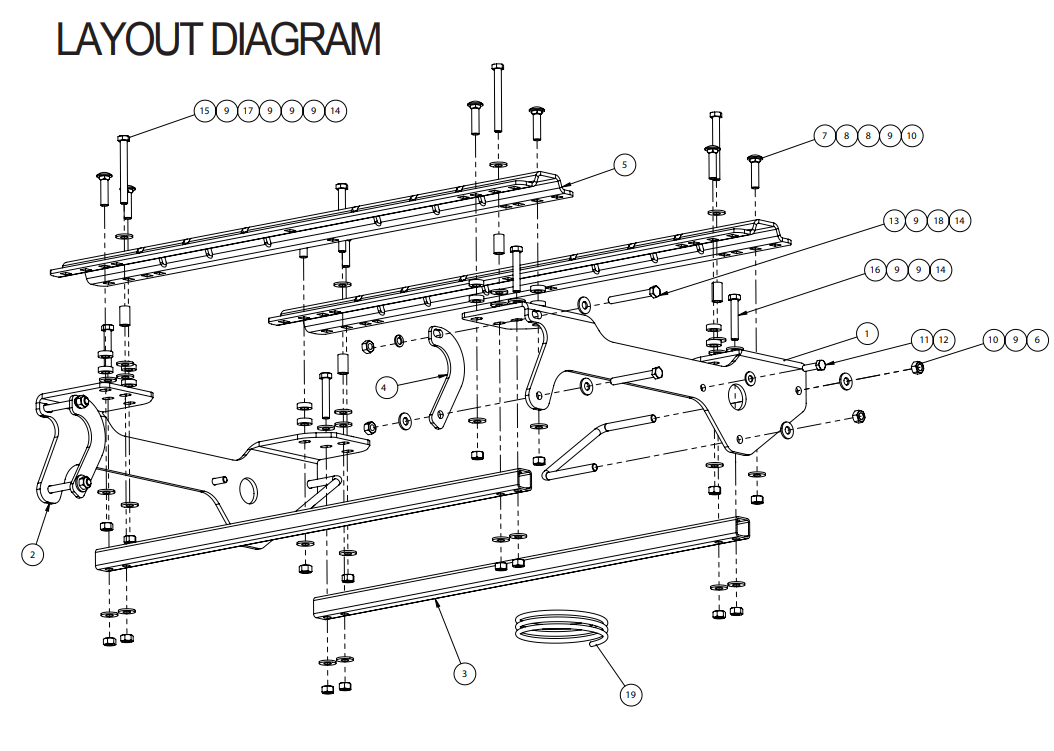

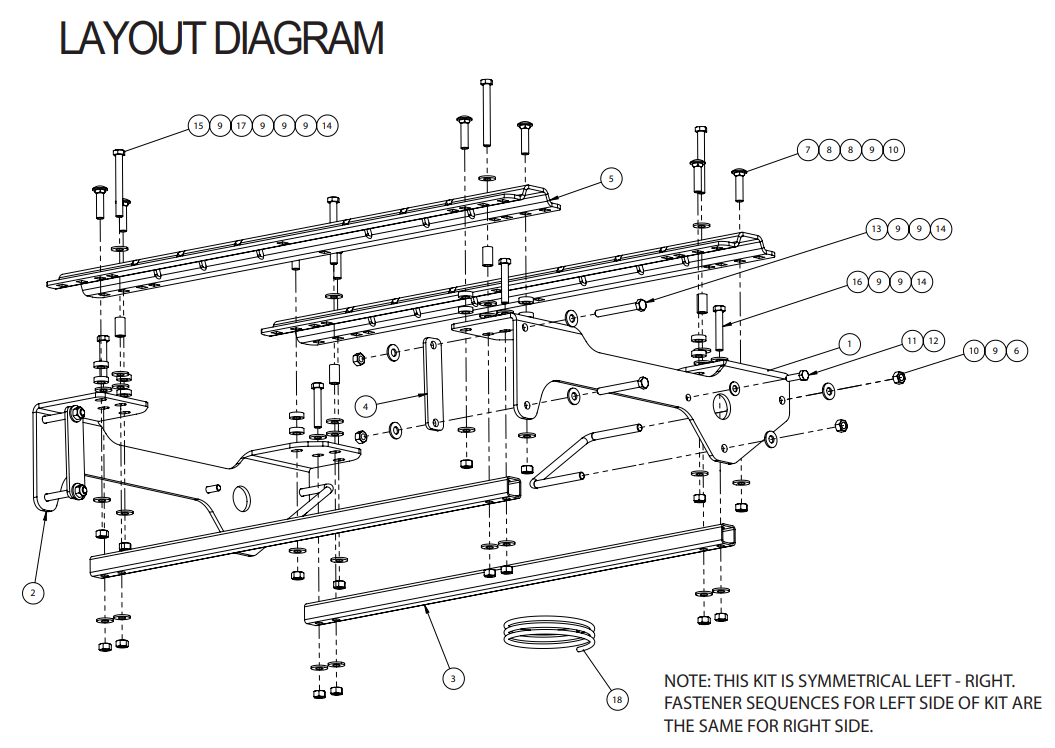

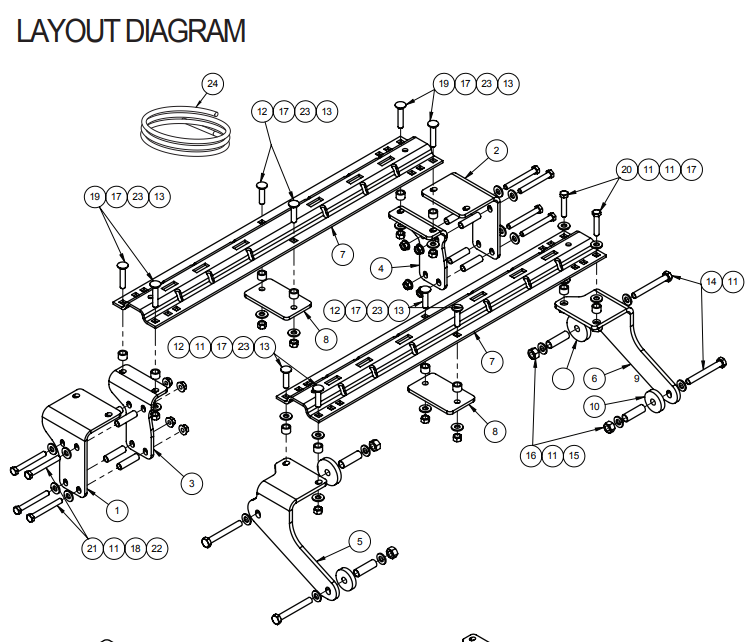

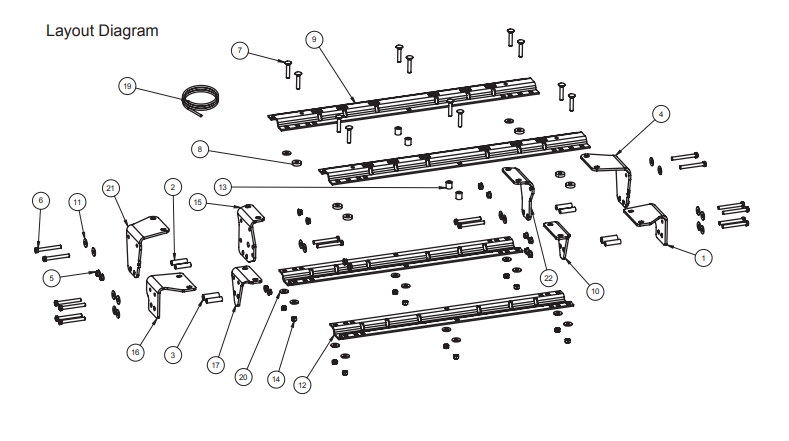

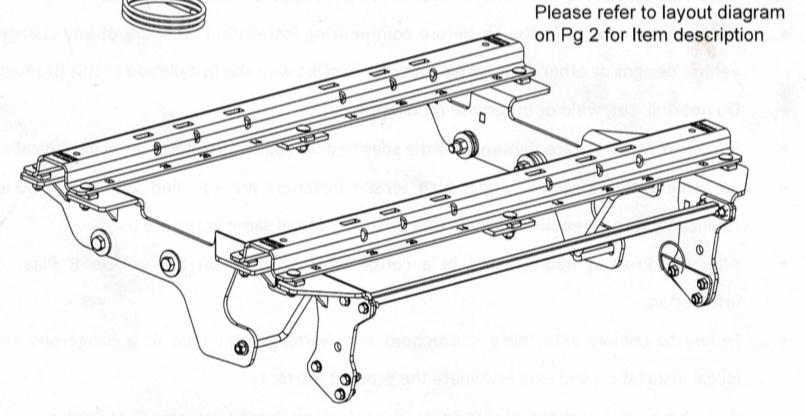

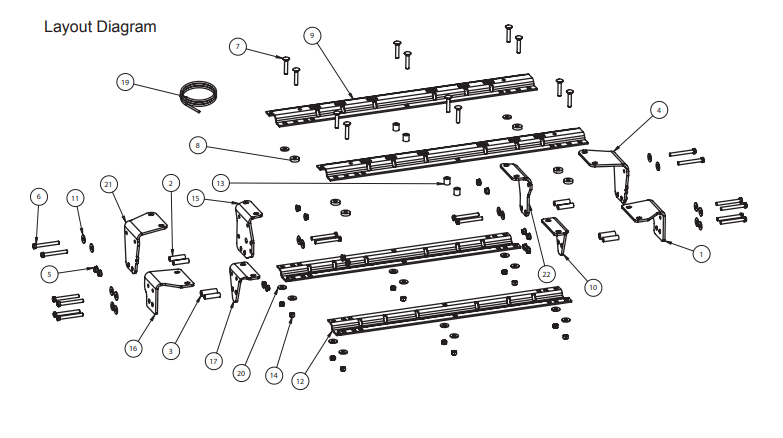

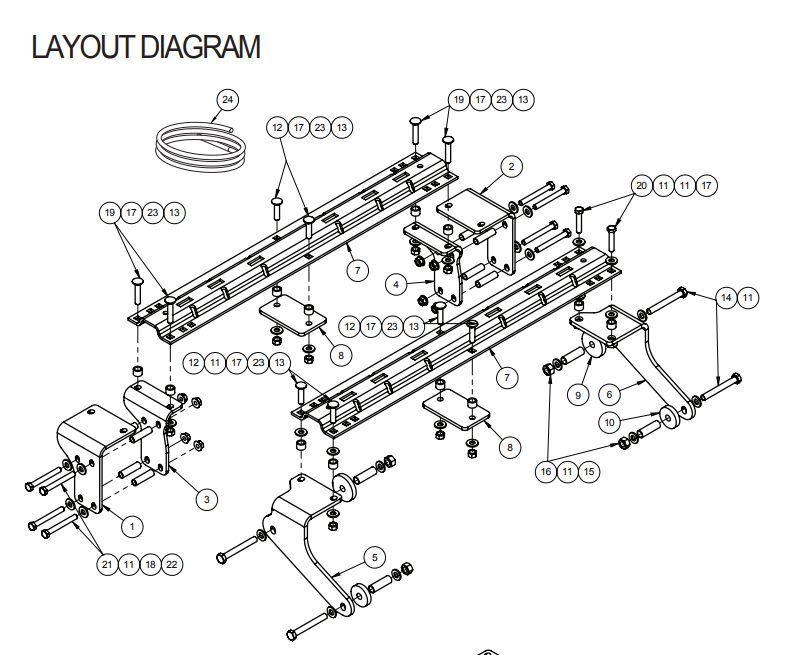

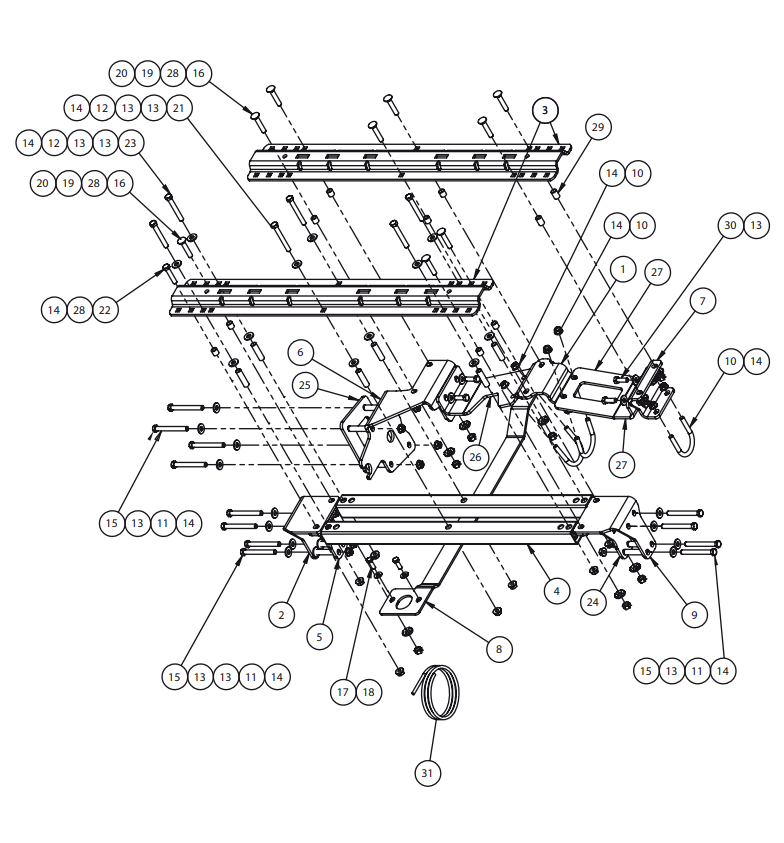

This Gooseneck kit is designed to fit to a Ranger, D ‘max, Colorado and Mazda BT-50. This kit includes a goose plate, 3″ ball, chassis kit, floor rails, ADR approval stickers and instructions. Tray kits are available upon request.

THIS ITEM IS SUITABLE TO TUB VEHICLES ONLY.

Clear selection

Description

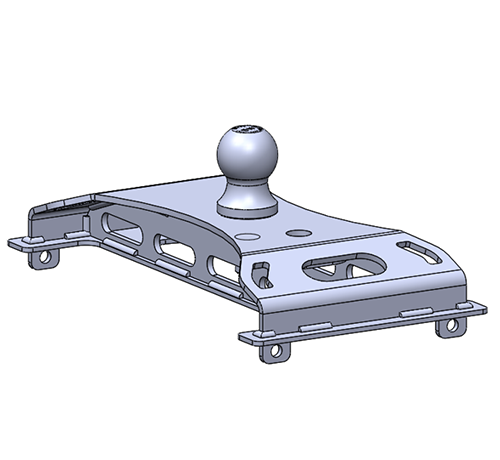

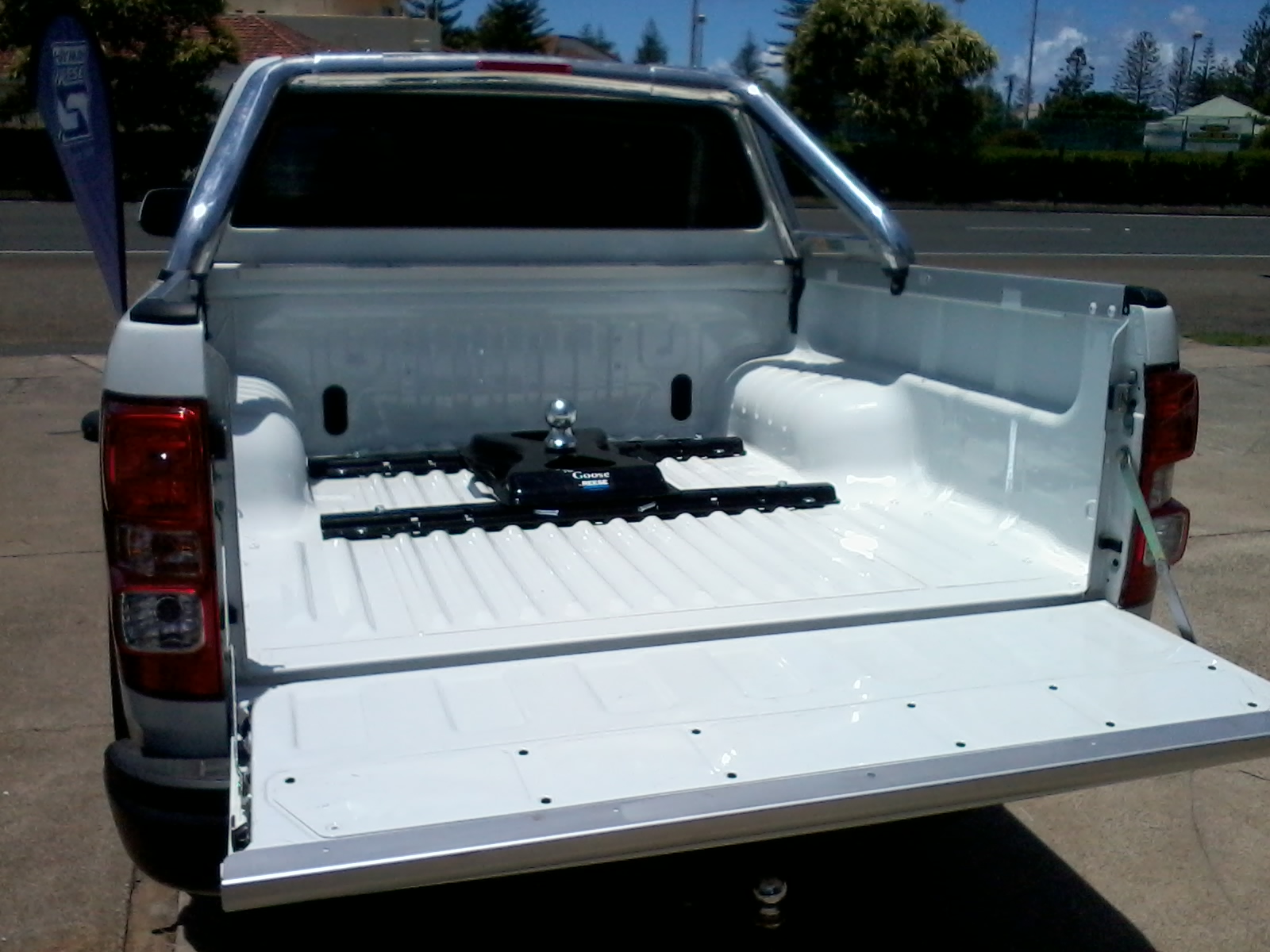

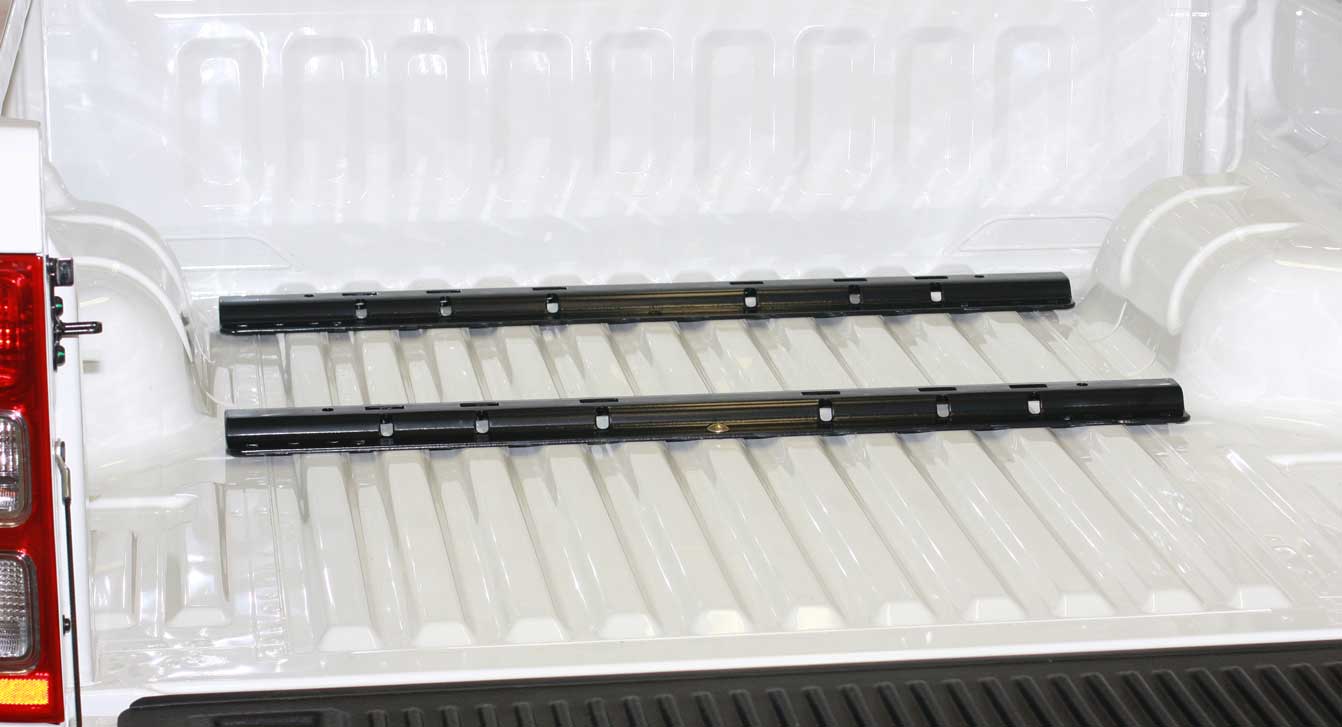

This product is designed to improve clearance for dual cab utes. Using the same mounting rails, available in the Fifth Wheel Hitches range, the Dual Position Goose Plate is easily removable when not in use.

  • Rated to a maximum of 3500kg*
  • Please note that this is supplied with a 3″ ball solution
  • Ball centreline sits at 190mm above the truck bed
  • Ball can be positioned centrally between rails or 125mm rearward
  • Plate designed and made in Australia
  • Limited lifetime warranty

*Note: Do not exceed vehicle’s maximum towing capacity (Refer to vehicle’s owner’s manual)



When not required for towing, the Dual Position Gooseplate can easily be removed from the rails.

Additional information

Weight 70 kg
Dimensions 120 × 40 × 50 cm
Vehicle Model

Isuzu DMAX, Ford Ranger PX, Ford Ranger PXII, Mazda BT50, Ford F250
